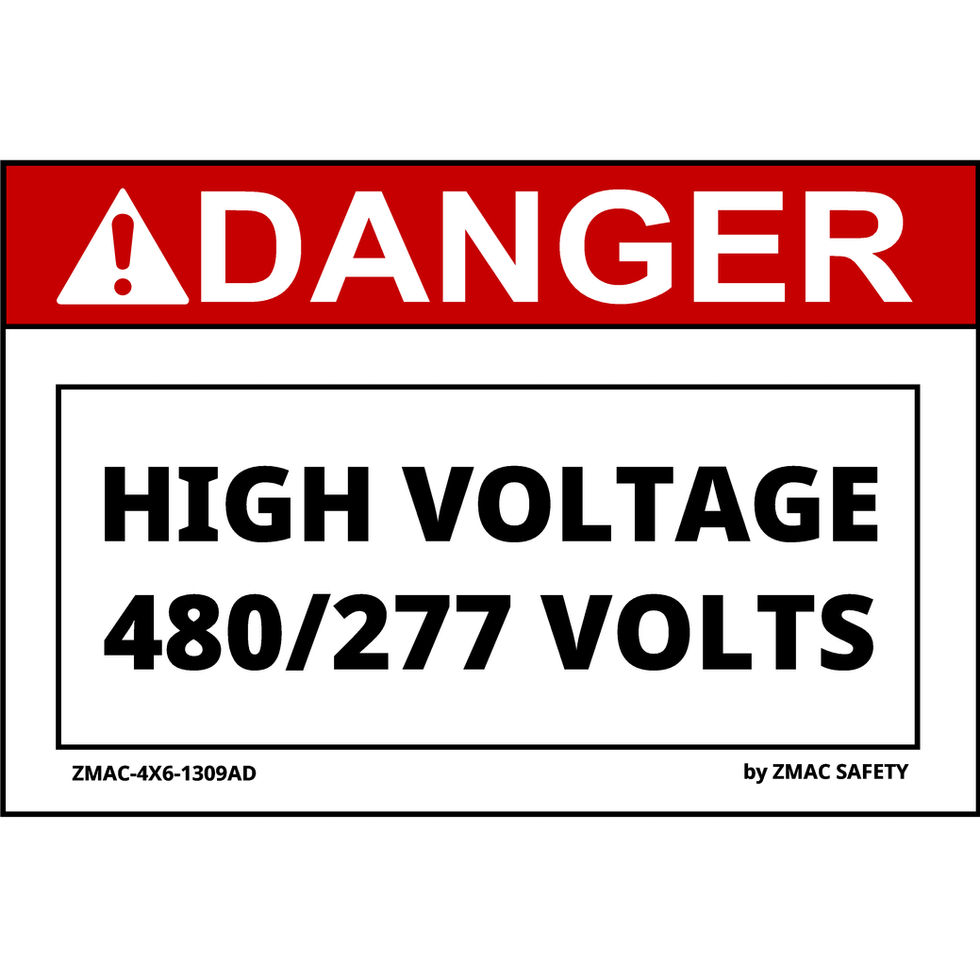

10 Pack 4"X6" Volt Rating Label Sticker Decal #1309 480/277V

From

Price

$29.99

Order 4 to get Bulk Pricing (-15% in Cart)

CHOOSE ANSI OR LEGACY

Quantity

Product Features and Specifications:

  • Compliant: complies with OSHA/NFPA 70E/NEC/CSA Z462 and ANSI Z535.4 standards for labeling.
  • Durable: resists chemicals, moisture, and UV light.
  • Easy to install: die-cut makes labels easy to peel and apply.

    • Vinyl Label Specifications:
    DuraLabel vinyl arc flash labels (specifically their Premium Vinyl line) are designed for extreme industrial environments and are the standard for electrical hazard identification.
    Material & Construction
    • Material: High-quality, industrial-grade vinyl film.
    • Thickness: 3.0 mil (76.2 microns) for the film; approximately 4.0 mil total with adhesive.
    • Finish: Polished gloss for high visibility and resistance to debris.
    • Adhesive: Pressure-sensitive, permanent acrylic adhesive (1.0 mil thick).
    • Backing: Typically provided on a peel-off liner for easy application.
    Durability & Performance
    • Outdoor Lifespan: Up to 5 years (guaranteed by the DuraLabel Premium Vinyl Warranty).
    • Service Temperature Range: -40°F to 200°F (-40°C to 93°C).
    • Minimum Application Temperature: 40°F (4°C).
    • Resistance Profile:
      • UV Resistance: High (prevents fading and brittleness in direct sunlight).
      • Chemical Resistance: Resists oils, alcohols, most alkalis, mild acids, and salt solutions.
      • Environmental: Withstands moisture, humidity, and abrasion.

    Polyester Label Specifications (Brady B-483A):
    High-performance, glossy white polyester label designed for extreme adhesion on textured or low-surface-energy (LSE) surfaces.
    • Material: Polyester (B-483A)
    • Finish: Glossy White
    • Adhesive: Ultra-aggressive Permanent Rubber-based
    • Agency Approvals: UL Recognized (UL969), CSA Accepted, RoHS/WEEE Compliant
    • Total Thickness: 0.0040 inch (0.102 mm)
    • Service Temp Range: -40°F to 248°F (-40°C to +120°C)
    • Environmental Resistance: High resistance to Fuel, Oil, Solvents, UV, and Humidity.

    Thermal Transfer Ribbon Specifications (Zebra 5095 Performance Resin):
    Designed for extreme environments where durability and resistance to chemicals or heat are critical.
    • Ink Formulation: High-performance Resin
    • Base Film: Polyester
    • Total Caliper: 6.5 microns
    • Chemical Resistance: Excellent (Motor oil, Isopropyl Alcohol, Hexane, Ammonia)
    • Environmental: High resistance to moisture, steam, abrasion, friction, and UV.
